LM-SC5810HA |
|

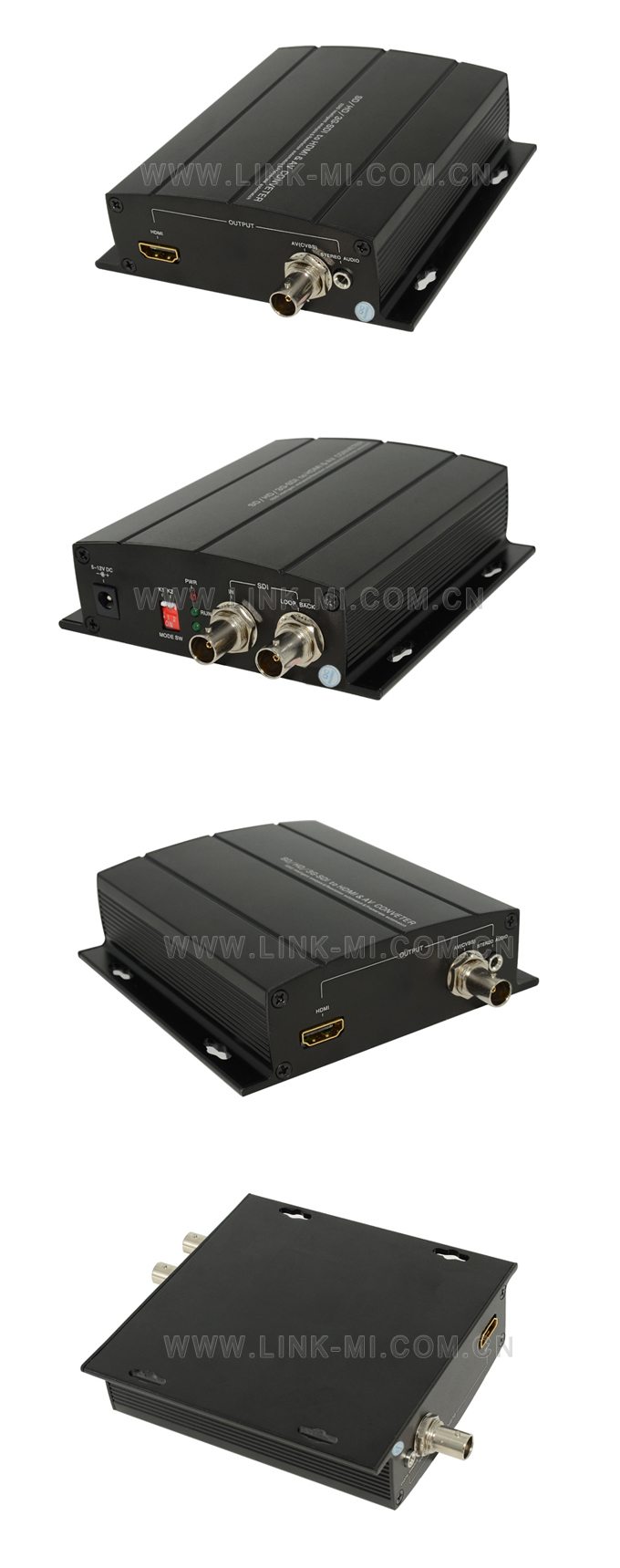

| LINK-MI LM-SC5810HA SD/HD/3G SDI to HDMI & AV Converter |
| |
Introduction:
1)Support SDI input format: 480i, 576i, 720p @ 50/60, 1080p @ 24/25/30, 1080i @ 50/60, 1080p @ 50/60.2)Support SMPTE 425M(A level and B level)，SMPTE424M, SMPTE292M, SMPTE259M-C.3)Carry 1 channel SDI signal loop out.4)SDI signal support the maximum input coax length: Belden 1694A: SD-SDI 400m; HD-SDI 200m; 3G-SDI 140m.5)Automatically embed SDI audio signal to HDMI signal and AV (CVBS) signal. |
|
|
| |
|
|
|
|
Specification
|
MODEL |
SD/HD/3G-SDI to HDMI&AV ( CVBS ) |
|
Video In |
SD/HD/3G-SDI |
|
Video Out |
SD/HD/3G-SDI, HDMI Digital Signal, AV(CVBS) |
|
Input Power |
DC 12V/250mA |
|
Video signal bandwidth |
270Mbps,1.485Gbps,2.970Gbps |
|
Connection Port |
SDI In/Out |
BNC-F (75Ω) |
|
HDMI Out |
HDMI 1.3 connector |
|
AV (CVBS) Out |
BNC |
|
LED |
SDI |
Flickering: Receiving |
|
HDMI |
Flickering: Receiving |
|
AV (CVBS ) |
Flickering: Receiving |
|
LMR |
On: Working |
|
Temperature / Humidity |
-20°C ~ +60°C / 0 ~ 80% | Packing Contents
1. Main Unit. SDI to HDMI & AV Converter
2. 1pcs Power Adapter
3. 1pcs User Manual |
 |
|
|
|
